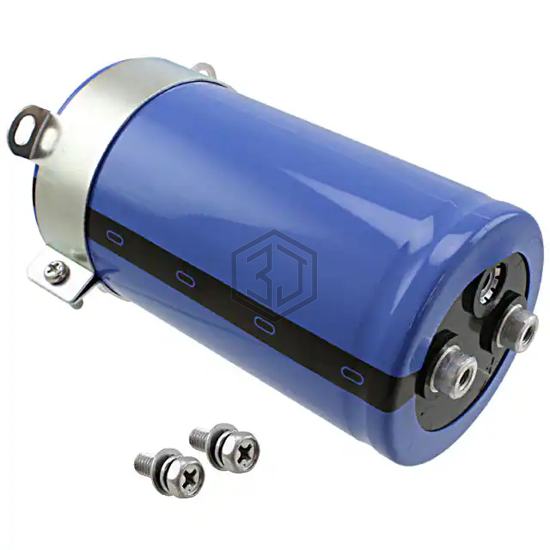

CAP ALUM 220000UF 20% 16V SCREW
LNR1C224MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,188
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.94 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1A224MSE | Nichicon | CAP ALUM 220000UF 20% 10V SCREW | 78% | View |
| LNR1A224MSEB | Nichicon | CAP ALUM 220000UF 20% 10V SCREW | 77% | View |
| CGS224U016X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 220000UF 16V SCREW | 74% | View |
| LNR1V224MSE | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 73% | View |
| B41458B5220M000 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 25V SCREW | 72% | View |
| MAL210147224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 40V SCREW | 57% | View |
Submit your RFQ for LNR1C224MSE and get a quote within 24 hours.
