CAP ALUM 220000UF 20% 25V SCREW

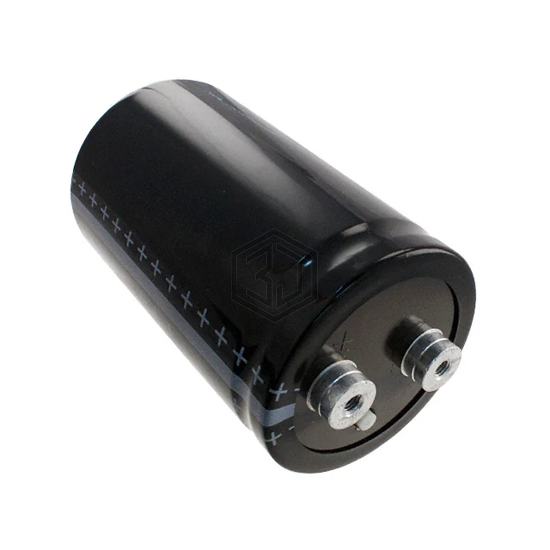

B41458B5220M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 220000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 7mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5.6 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41456B5220M003 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 25V SCREW | 100% | View |
| MAL210186224E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220000UF 20% 25V SCREW | 96% | View |
| B41458B7220M003 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 40V SCREW | 79% | View |
| LNR1V224MSE | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 79% | View |
| LNT1H224MSEN | Nichicon | CAP ALUM 220000UF 20% 50V SCREW | 70% | View |
| LNT1H224MSEB | Nichicon | CAP ALUM 220000UF 20% 50V SCREW | 70% | View |
Submit your RFQ for B41458B5220M000 and get a quote within 24 hours.
