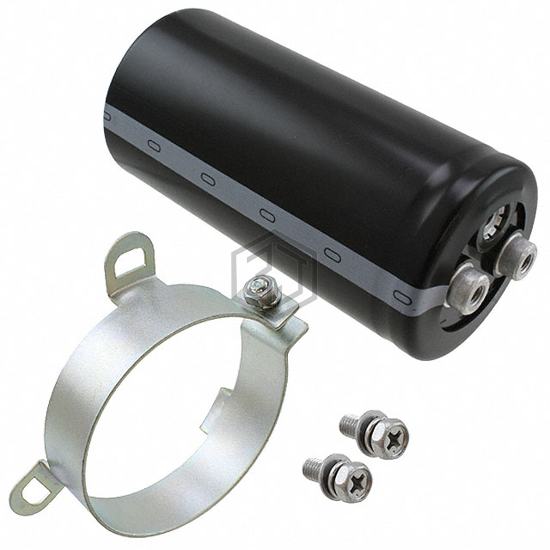

CAP ALUM 1800UF 20% 450V SCREW
LNK2W182MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,575
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.64 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.134" (105.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQR2W182MSEFBB | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 99% | View |
| B43564B6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 500V SCREW | 94% | View |
| DCMC182T450BD2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 450V SCREW | 91% | View |
| LNY2G182MSEF | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 90% | View |
| LNX2H182MSEGBB | Nichicon | CAP ALUM 1800UF 20% 350V SCREW | 85% | View |
| LNX2J182MSEH | Nichicon | CAP ALUM 1800UF 20% 630V SCREW | 79% | View |
