CAP ALUM 1800UF 20% 500V SCREW

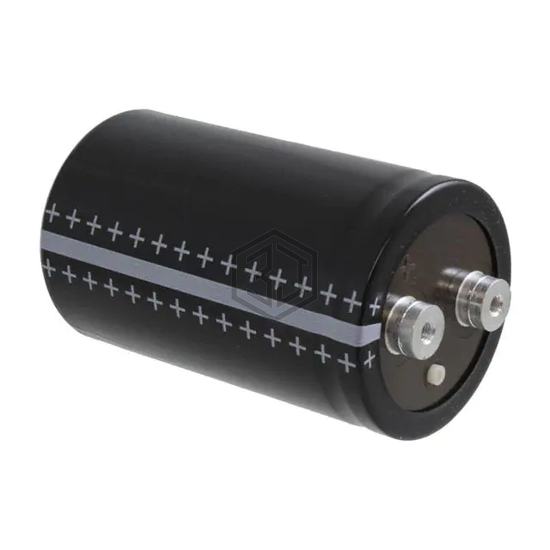

B43564B6188M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1800UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 89mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 71 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK2W182MSEF | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 94% | View |
| DCMC182T450BD2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 450V SCREW | 89% | View |
| LNY2G182MSEF | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 88% | View |
| LNC2H182MTEG | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 85% | View |
| LNX2J182MSEH | Nichicon | CAP ALUM 1800UF 20% 630V SCREW | 84% | View |
| LNX2H182MSEGBB | Nichicon | CAP ALUM 1800UF 20% 350V SCREW | 79% | View |
