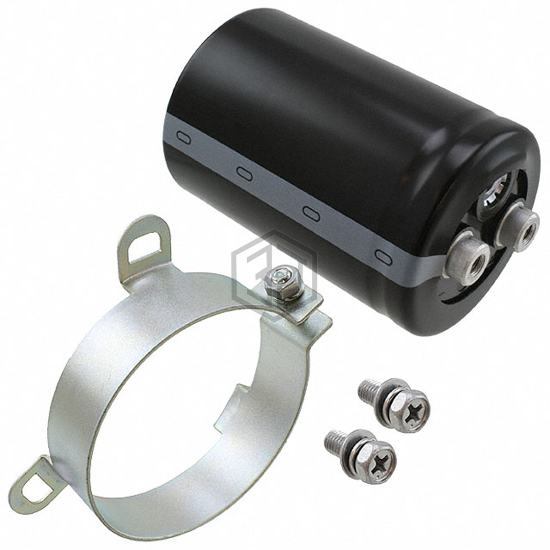

CAP ALUM 1200UF 20% 400V SCREW
LNK2G122MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.12 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 2.953" (75.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK2G122MSEFBN | Nichicon | CAP ALUM 1200UF 20% 400V SCREW | 100% | View |
| LNY2W122MSEF | Nichicon | CAP ALUM 1200UF 20% 450V SCREW | 95% | View |
| LNK2V122MSEFBB | Nichicon | CAP ALUM 1200UF 20% 350V SCREW | 93% | View |
| LNU2H122MSEGBN | Nichicon | CAP ALUM 1200UF 20% 500V SCREW | 92% | View |
| 500LSU1200MNBTI51X98 | Rubycon | CAP ALUM 1200UF 20% 500V SCREW | 90% | View |
| HES122G450X4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 450V SCREW | 90% | View |
