Cornell Dubilier Electronics (CDE)

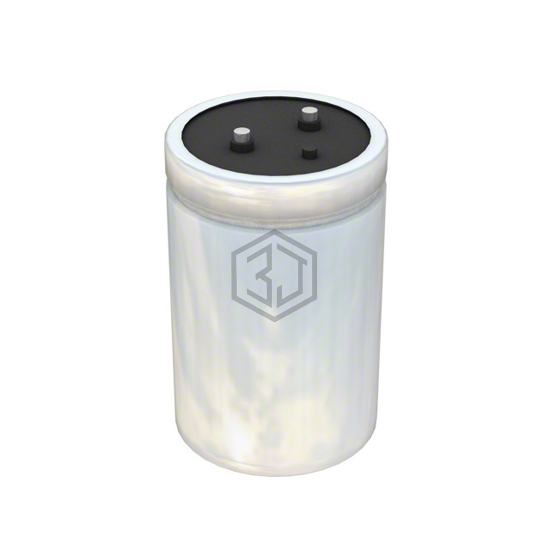

CAP ALUM 1200UF 450V SCREW
HES122G450X4L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1200UF 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,062
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | 0%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 69mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.733 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2H122MTEG | Nichicon | CAP ALUM 1200UF 20% 500V SCREW | 89% | View |
| LNU2H122MSEFBB | Nichicon | CAP ALUM 1200UF 20% 500V SCREW | 89% | View |
| LNU2H122MSEGBB | Nichicon | CAP ALUM 1200UF 20% 500V SCREW | 89% | View |
| LNU2H122MSEGBN | Nichicon | CAP ALUM 1200UF 20% 500V SCREW | 89% | View |
| LNU2H122MTEF | Nichicon | CAP ALUM 1200UF 20% 500V SCREW | 89% | View |
| B43742A6128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 500V SCREW | 88% | View |
Submit your RFQ for HES122G450X4L and get a quote within 24 hours.
