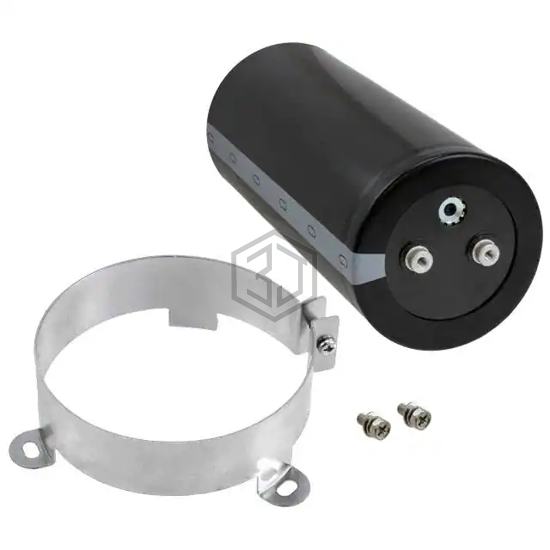

CAP ALUM 6800UF 20% 450V SCREW
LNC2W682MSEJ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,143
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 38.5 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 4.646" (118.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2W682MTEJ | Nichicon | CAP ALUM 6800UF 20% 450V SCREW | 90% | View |
| B43733A9688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 400V SCREW | 83% | View |
| B43458A9688M003 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 400V SCREW | 83% | View |
| B43464A9688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 400V SCREW | 80% | View |
| LNY2G682MSEGBN | Nichicon | CAP ALUM 6800UF 20% 400V SCREW | 79% | View |
| LNY2V682MSEG | Nichicon | CAP ALUM 6800UF 20% 350V SCREW | 75% | View |
Submit your RFQ for LNC2W682MSEJ and get a quote within 24 hours.
