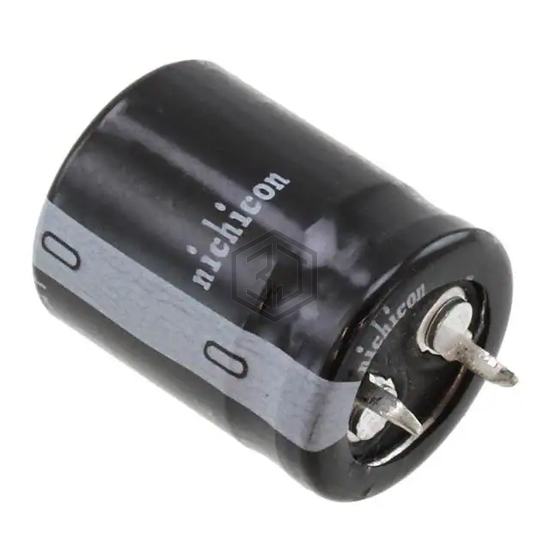

CAP ALUM 330UF 20% 160V SNAP
LLS2C331MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 5,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.325 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYN07CD333Y02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% SNAP | 100% | View |
| UCY2D331MHD | Nichicon | CAP ALUM 330UF 20% 200V RADIAL | 85% | View |
| B43305E2337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 81% | View |
| LGU2P331MELZ | Nichicon | CAP ALUM 330UF 20% 220V SNAP | 80% | View |
| UKZ1H331MHM | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 56% | View |
| RZW331M1VBK-1016S | SURGE | CAP ALUM 330UF 20% 35V RADIAL | 50% | View |
