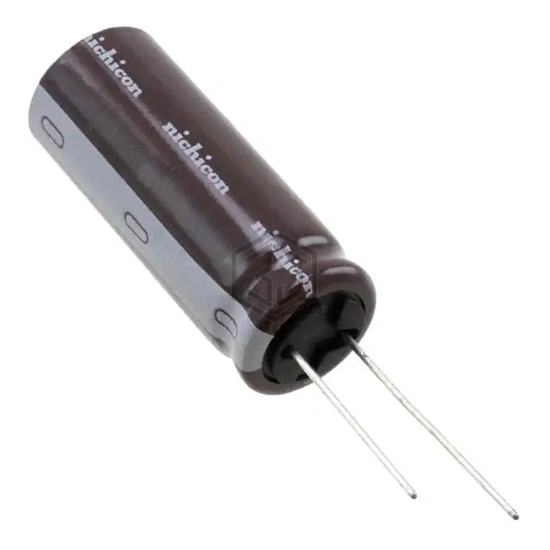

CAP ALUM 330UF 20% 200V RADIAL
UCY2D331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.595 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505E2337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 200V SNAP | 93% | View |
| B43508E2337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 81% | View |
| LGU2P331MELZ | Nichicon | CAP ALUM 330UF 20% 220V SNAP | 79% | View |
| B43544G9337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 59% | View |
| MLS331M200EK1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 200V FLATPACK | 58% | View |
| EEU-TA1J331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 54% | View |
