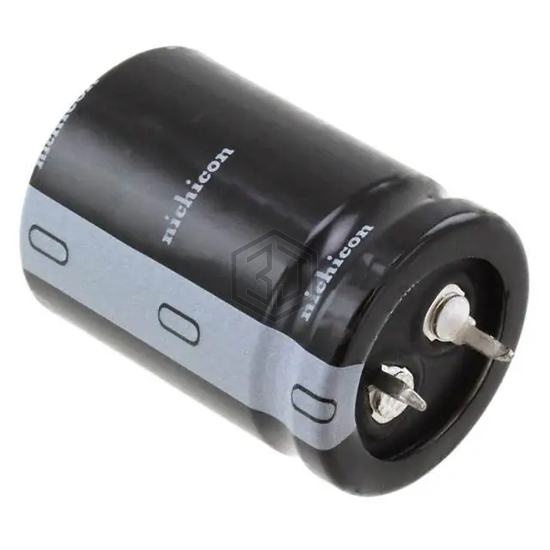

CAP ALUM 2700UF 20% 80V SNAP
LLS1K272MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,865
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.93 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.3695 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS1K272MESA | Nichicon | CAP ALUM 2700UF 20% 80V SNAP | 97% | View |
| EKMH101VSN272MR45T | United Chemi-Con | CAP ALUM 2700UF 20% 100V SNAP | 92% | View |
| LGU1J272MELA | Nichicon | CAP ALUM 2700UF 20% 63V SNAP | 77% | View |
| EKMH630VSN272MQ35U | United Chemi-Con | CAP ALUM 2700UF 20% 63V SNAP | 75% | View |
| 16ZLH2700MEFC12.5X25 | Rubycon | CAP ALUM 2700UF 20% 16V RADIAL | 67% | View |
| EEU-FC1A272SB | Panasonic Electronic Components | CAP ALUM 2700UF 20% 10V RADIAL | 53% | View |
