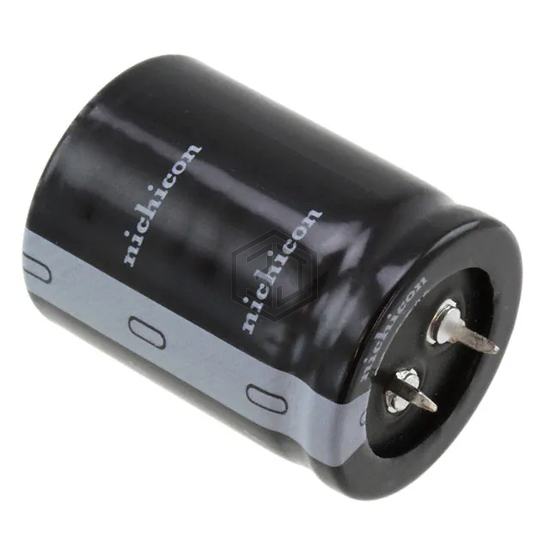

CAP ALUM 1800UF 20% 200V SNAP
LLG2D182MELB40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.98 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504F2188M80 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 200V SNAP | 95% | View |
| LLS2D182MELB | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 84% | View |
| LGW2D182MELC40 | Nichicon | CAP ALUM 1800UF 20% 200V SNAP | 84% | View |
| SLPX182M100E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 100V SNAP | 64% | View |
| EGQB250ELL182ML20H | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 61% | View |
| UPA1V182MHD | Nichicon | CAP ALUM 1800UF 20% 35V RADIAL | 60% | View |
