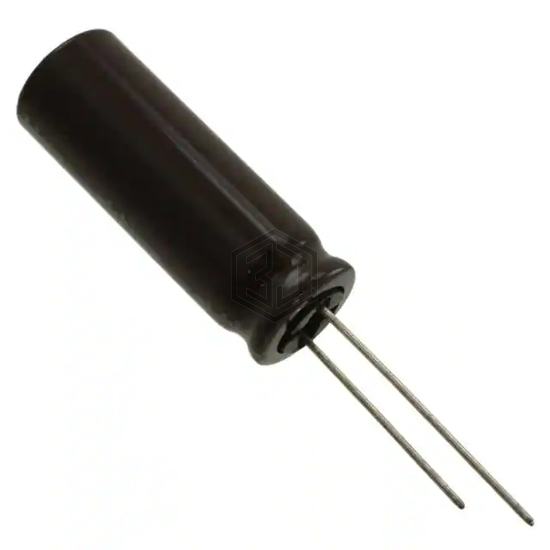

CAP ALUM 1800UF 20% 35V RADIAL
UPA1V182MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.499 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.94 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW182M1VBK-1340S | Surge | CAP ALUM 35V POLAR | 92% | View |
| B41896C6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 50V RADIAL | 78% | View |
| 601D188G050JP2 | Vishay Sprague | CAP ALUM 1800UF 50V AXIAL | 77% | View |
| MAL224651182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 50V RADIAL | 70% | View |
| 860160480032 | Würth Elektronik | CAP ALUM 1800UF 20% 25V RADIAL | 62% | View |
| EEU-FC1C182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 16V RADIAL | 54% | View |
Submit your RFQ for UPA1V182MHD and get a quote within 24 hours.
