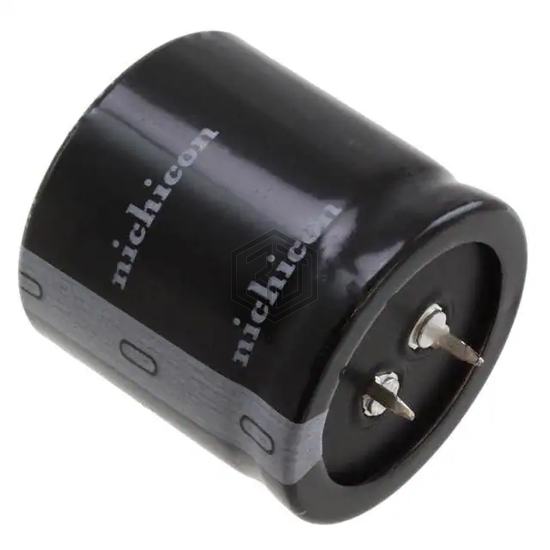

CAP ALUM 330UF 20% 450V SNAP
LKX2W331MESC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 2,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9734 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215956331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 400V SNAP | 93% | View |
| ELHS4H1VSN331MR45S | United Chemi-Con | CAP ALUM 330UF 20% 475V SNAP | 90% | View |
| MAL215973331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 250V SNAP | 71% | View |
| 450HXG330MEFC30X45 | Rubycon | CAP ALUM 330UF 20% 450V SNAP | 71% | View |
| LGJ2D331MELB | Nichicon | CAP ALUM 330UF 20% 200V SNAP | 69% | View |
| LGW2E331MELA25 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 68% | View |
Submit your RFQ for LKX2W331MESC35 and get a quote within 24 hours.
