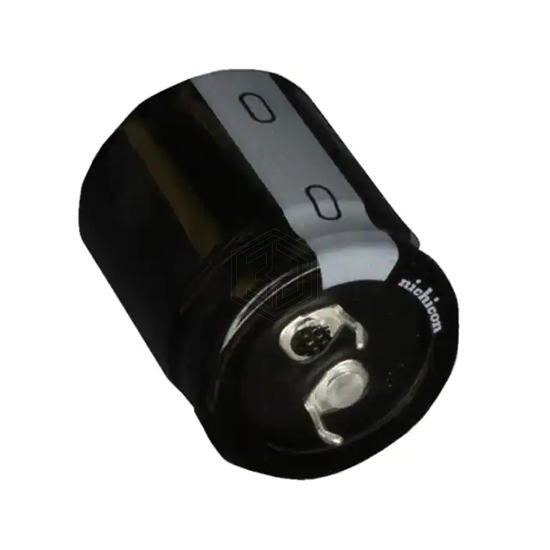

CAP ALUM 330UF 20% 250V SNAP
LGW2E331MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 6,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250MXC330MEFCSN25X30 | Rubycon | CAP ALUM 330UF 20% 250V SNAP | 100% | View |
| 381LR331M200H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 200V SNAP | 86% | View |
| LGJ2E331MELB20 | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 76% | View |
| ELHS4H1VSN331MR45S | United Chemi-Con | CAP ALUM 330UF 20% 475V SNAP | 75% | View |
| LGJ2D331MELB | Nichicon | CAP ALUM 330UF 20% 200V SNAP | 70% | View |
| LGJ2Z331MELB | Nichicon | CAP ALUM 330UF 20% 180V SNAP | 69% | View |
