CAP ALUM 3300UF 20% 56V SNAP

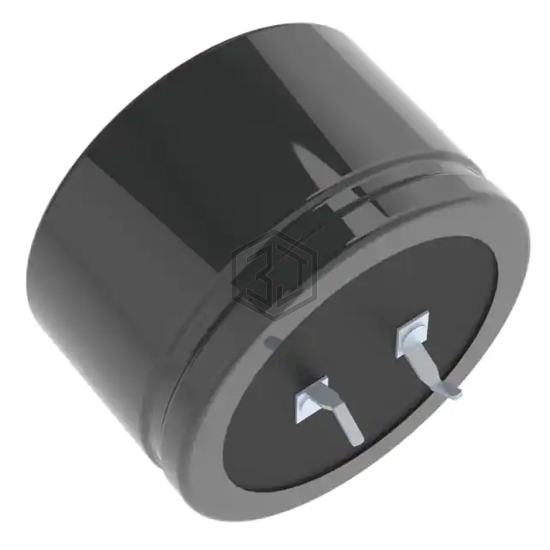

LKSN2332MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 56V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 56 V, package / case Radial, Can - Snap-In.
In Stock: 9,881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 56 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.35 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 338LBA050M2CC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 50V SNAP | 95% | View |
| EEU-HD1H332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 50V RADIAL | 86% | View |
| MAL215622332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 80V SNAP | 78% | View |
| MAL224650332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 76% | View |
| LLS1K332MELB | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 75% | View |
| UPA1E332MHD6 | Nichicon | CAP ALUM 3300UF 20% 25V RADIAL | 70% | View |
