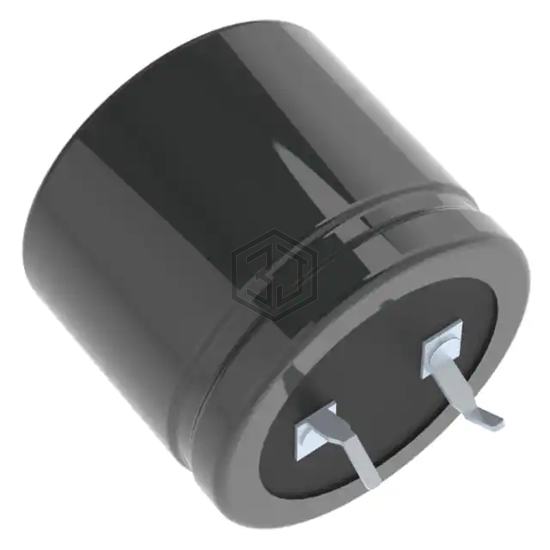

CAP ALUM 1500UF 20% 56V SNAP
LKSN2152MESA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 56V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 56 V, package / case Radial, Can - Snap-In.
In Stock: 1,379
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 56 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS1K152MESB | Nichicon | CAP ALUM 1500UF 20% 80V SNAP | 79% | View |
| EEU-FC1V152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 74% | View |
| ELXV350ELL152MK40S | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 72% | View |
| MAL217256152E3 | Vishay Beyschlag/Draloric/BC Components | 1500UF 25V 12,5X20MM 105C 7000H | 70% | View |
| EKMH101VSN152MQ40U | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 69% | View |
| LKG1K152MESCCK | Nichicon | CAP ALUM 1500UF 20% 80V SNAP | 62% | View |
Submit your RFQ for LKSN2152MESA and get a quote within 24 hours.
