Vishay Beyschlag/Draloric/BC Components
1500UF 25V 12,5X20MM 105C 7000H

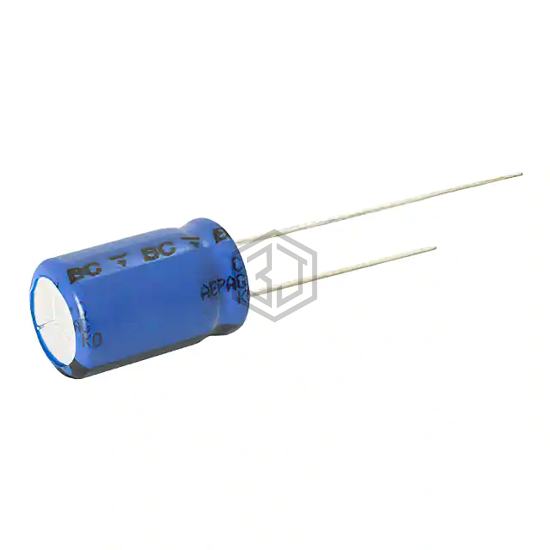

MAL217256152E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. 1500UF 25V 12,5X20MM 105C 7000H. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,727
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.69 A @ 100 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 85% | View |
| ELXV350ELL152MK40S | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 83% | View |
| MAL225030152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 79% | View |
| EKMH101VSN152MQ40U | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 73% | View |
| 16RX301500MT810X20 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 71% | View |
| EEU-FR1A152 | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V RADIAL | 69% | View |
Submit your RFQ for MAL217256152E3 and get a quote within 24 hours.
