CAP ALUM 18000UF 20% 35V SNAP

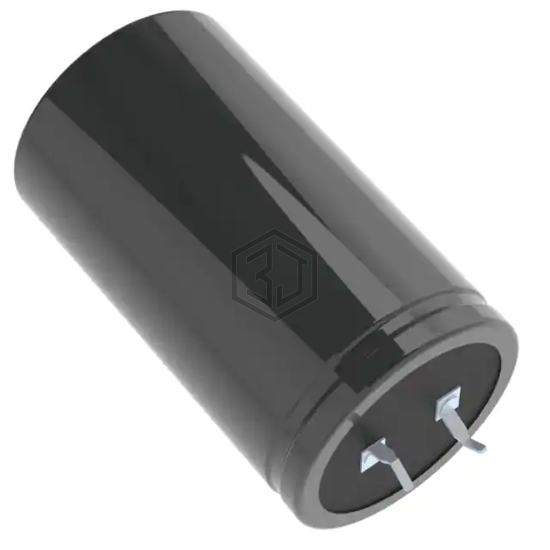

LKS1V183MESB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,042
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 4.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41252C5189M | EPCOS - TDK Electronics | CAP ALUM 18000UF 20% 25V SNAP | 86% | View |
| LGU1E183MELA | Nichicon | CAP ALUM 18000UF 20% 25V SNAP | 82% | View |
| MAL215835183E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 18000UF 20% 16V SNAP | 69% | View |
| B41231A6189M000 | EPCOS - TDK Electronics | CAP ALUM 18000UF 20% 50V SNAP | 64% | View |
| SLPX183M010C3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 18000UF 20% 10V SNAP | 63% | View |
| EKMH160VSN183MP45U | United Chemi-Con | CAP ALUM 18000UF 20% 16V SNAP | 60% | View |
Submit your RFQ for LKS1V183MESB and get a quote within 24 hours.
