CAP ALUM 10000UF 20% 100V SOLDER

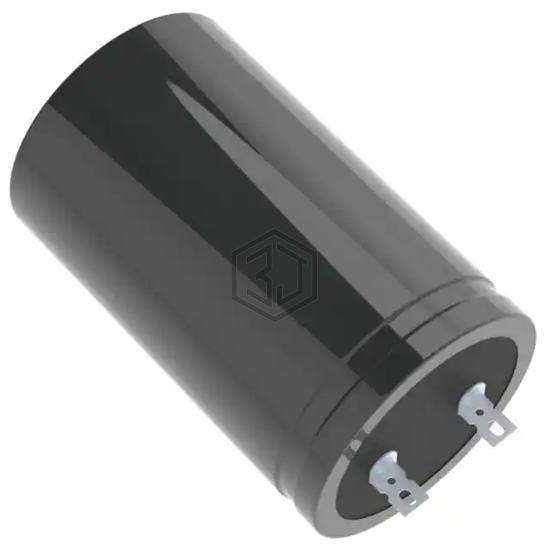

LKG2A103MKZS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 100V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Solder Lug.
In Stock: 4,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 8.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 2.480" Dia (63.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VQT103MB80U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SNAP | 90% | View |
| MLSG952M010JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 9500UF 20% 10V FLATPACK | 63% | View |
| 63MXG10000MEFCSN35X40 | Rubycon | CAP ALUM 10000UF 20% 63V SNAP | 61% | View |
| MLSG932M020JH0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 9300UF 20% 20V FLATPACK | 55% | View |
| 50USC10000MEFC30X40 | Rubycon | CAP ALUM 10000UF 20% 50V SNAP | 55% | View |
| 604D972G010JS7 | Vishay Sprague | CAP ALUM 9700UF 10V AXIAL | 53% | View |
Submit your RFQ for LKG2A103MKZS and get a quote within 24 hours.
