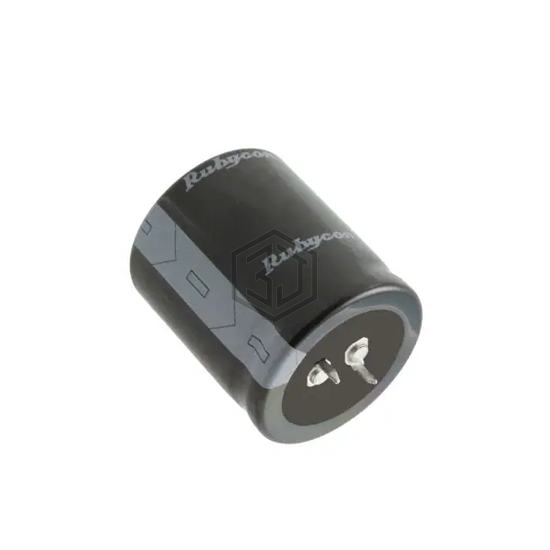

CAP ALUM 10000UF 20% 63V SNAP
63MXG10000MEFCSN35X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,072
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.152 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215877103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 40V SNAP | 80% | View |
| ALC80A912CF063 | KEMET | CAP ALUM 9100UF 20% 63V SNAP | 69% | View |
| EKMH101VQT103MB80U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SNAP | 69% | View |
| B41505A7109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 35V SNAP | 62% | View |
| MLSG952M010JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 9500UF 20% 10V FLATPACK | 59% | View |
| ELBK250ELL952ALP1S | United Chemi-Con | CAP ALUM 9500UF 25V RADIAL | 58% | View |
Submit your RFQ for 63MXG10000MEFCSN35X40 and get a quote within 24 hours.
