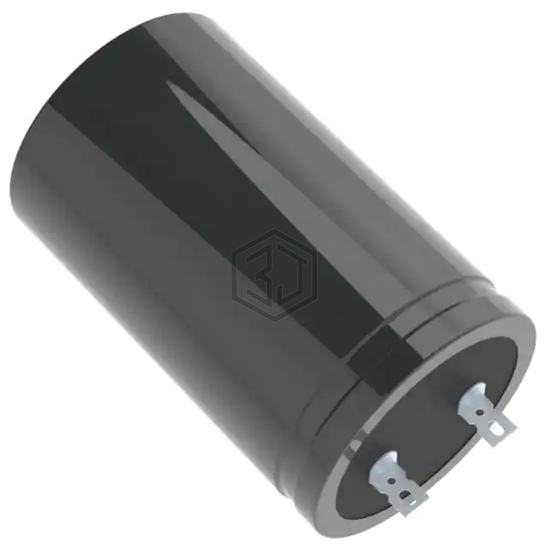

CAP ALUM 15000UF 20% 80V SOLDER
LKG1K153MKZS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 80V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Solder Lug.
In Stock: 7,563
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 10.1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 2.480" Dia (63.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH630VSN153MA63S | United Chemi-Con | CAP ALUM 15000UF 20% 63V SNAP | 78% | View |
| EKMH500VNN153MA50S | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 70% | View |
| ESMH500VSN153MA40U | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 70% | View |
| 383LX153M063N052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 63V SNAP | 66% | View |
| LKSN2153MESC | Nichicon | CAP ALUM 15000UF 20% 56V SNAP | 61% | View |
| 50MXG15000MEFCSN35X40 | Rubycon | CAP ALUM 15000UF 20% 50V SNAP | 56% | View |
Submit your RFQ for LKG1K153MKZS and get a quote within 24 hours.
