Cornell Dubilier Electronics (CDE)
CAP ALUM 15000UF 20% 63V SNAP

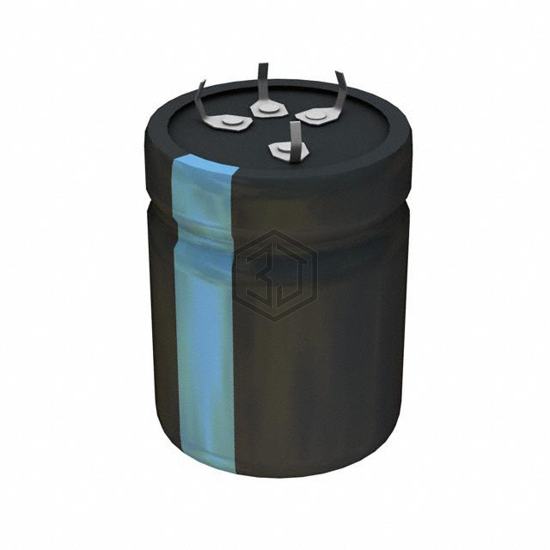

383LX153M063N052 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 15000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 4,150
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.5 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50MXG15000MEFCSN35X40 | Rubycon | CAP ALUM 15000UF 20% 50V SNAP | 93% | View |
| 50MXC15000MEFC35X50 | Rubycon | CAP ALUM 15000UF 20% 50V SNAP | 93% | View |
| EKMH500VNN153MA50S | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 85% | View |
| MAL215847153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V SNAP | 80% | View |
| 381LX153M035K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 35V SNAP | 72% | View |
| EKMH350VNN153MA35U | United Chemi-Con | CAP ALUM 15000UF 20% 35V SNAP | 68% | View |
