CAP ALUM 15000UF 20% 35V SNAP

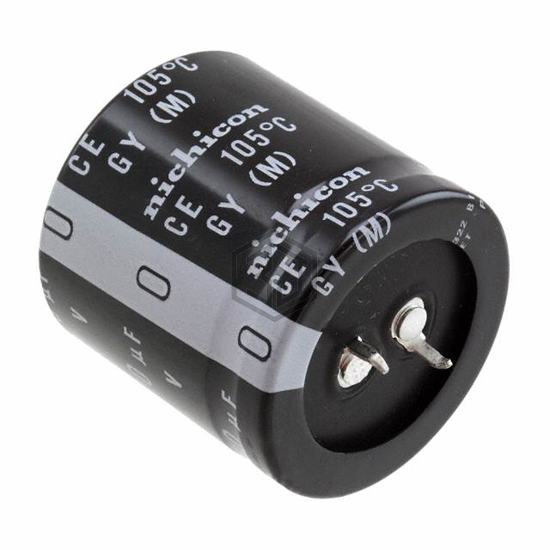

LGY1V153MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,133
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35MXC15000MEFCSN30X40 | Rubycon | CAP ALUM 15000UF 20% 35V SNAP | 93% | View |
| 35MXC15000MEFCSN35X35 | Rubycon | CAP ALUM 15000UF 20% 35V SNAP | 93% | View |
| LGY1E153MELC30 | Nichicon | CAP ALUM 15000UF 20% 25V SNAP | 85% | View |
| SLP153M025C4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 25V SNAP | 78% | View |
| SLP153M050H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 50V SNAP | 68% | View |
| 6.3PX15000MEFC16X31.5 | Rubycon | CAP ALUM 15000UF 20% 6.3V RADIAL | 59% | View |
Submit your RFQ for LGY1V153MELC35 and get a quote within 24 hours.
