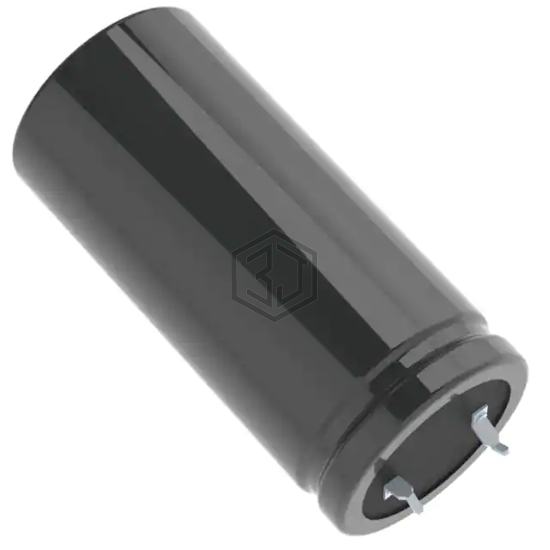

CAP ALUM 1500UF 20% 50V SNAP
LKG1H152MESZCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 2,667
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN500ELL152MLN3S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 97% | View |
| 678D158M040FV4D | Vishay Sprague | CAP ALUM 1500UF 20% 40V RADIAL | 86% | View |
| LKSN2152MESA | Nichicon | CAP ALUM 1500UF 20% 56V SNAP | 85% | View |
| EEU-FC1V152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 82% | View |
| 63USC1500MEFC20X25 | Rubycon | CAP ALUM 1500UF 20% 63V SNAP | 82% | View |
| MAL215812152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 80V SNAP | 79% | View |
