CAP ALUM 2200UF 20% 25V SNAP

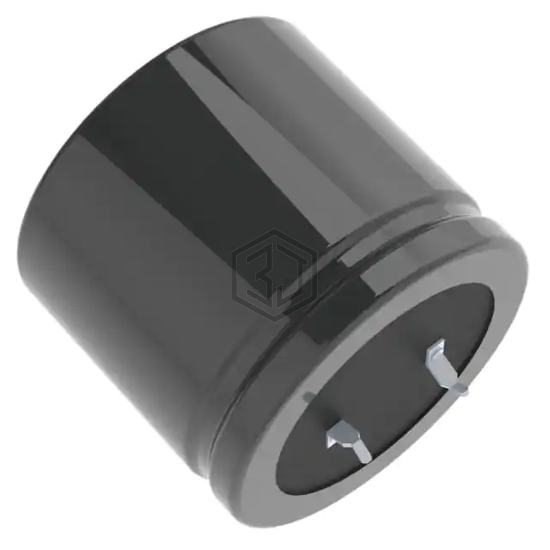

LKG1E222MESBCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 8,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHV1E222MHD6 | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 100% | View |
| UPJ1E222MHD6TN | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 99% | View |
| UPS1V222MHD1AA | Nichicon | CAP ALUM 35V POLAR | 82% | View |
| PEG124GL4220QE4 | KEMET | CAP ALUM 16V POLAR | 81% | View |
| EKMH101VSN222MR40U | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 58% | View |
| MAL214254222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for LKG1E222MESBCK and get a quote within 24 hours.
