CAP ALUM 2200UF 20% 25V RADIAL

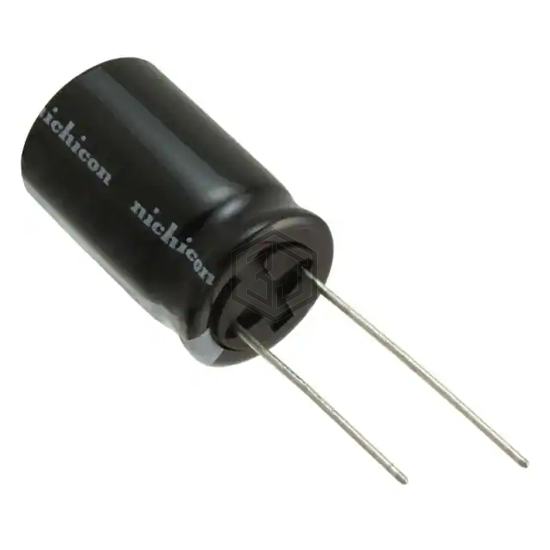

UHV1E222MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,793
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.575 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1E222MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHW1E222MHD | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 96% | View |
| MAL219090225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 75% | View |
| 25RX302200MGC16X31.5 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 74% | View |
| 63ZLH2200MEFC18X40 | Rubycon | CAP ALUM 2200UF 20% 63V RADIAL | 72% | View |
| EKMH101VSN222MR40U | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 68% | View |
| B41252B228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 80V SNAP | 56% | View |
