CAP ALUM 8200UF 20% 16V SNAP

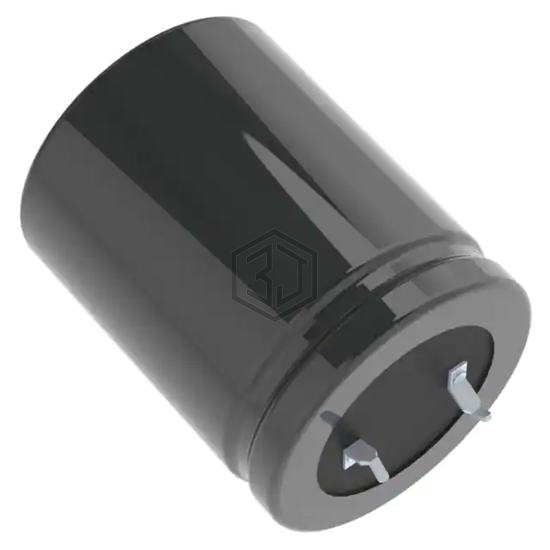

LKG1C822MESABK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 2,649
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C4828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 16V RADIAL | 100% | View |
| MAL212615822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V AXIAL | 97% | View |
| ESMH160VSN822MP25U | United Chemi-Con | CAP ALUM 8200UF 20% 16V SNAP | 97% | View |
| LGU1E822MELB | Nichicon | CAP ALUM 8200UF 20% 25V SNAP | 81% | View |
| EKZN6R3ELL822MK35S | United Chemi-Con | CAP ALUM 8200UF 20% 6.3V RADIAL | 62% | View |
| SLPX822M035A4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 58% | View |
Submit your RFQ for LKG1C822MESABK and get a quote within 24 hours.
