CAP ALUM 8200UF 20% 25V SNAP

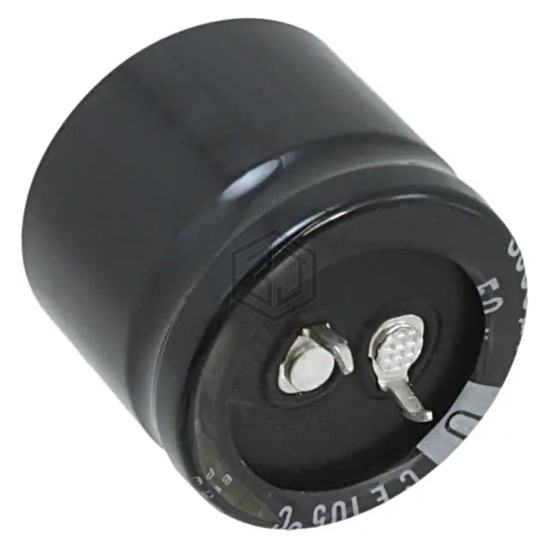

LGU1E822MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5875 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for LGU1E822MELB and get a quote within 24 hours.
