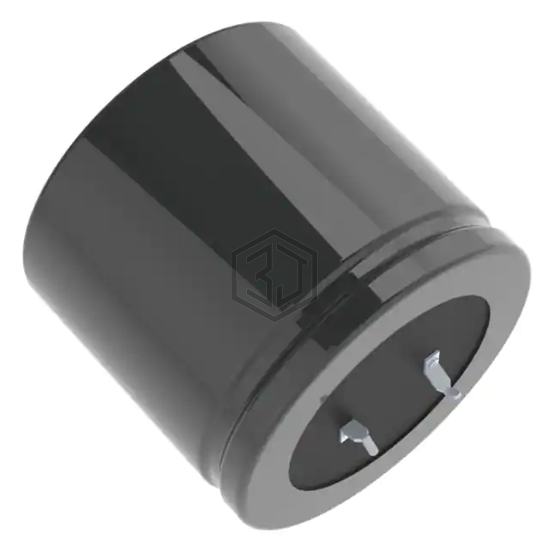

CAP ALUM 6800UF 20% 16V SNAP
LKG1C682MESCCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 9,194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.15 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKY-160ELL682ML40S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 97% | View |
| UFW1C682MHD | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 92% | View |
| MAL205876682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V SNAP | 80% | View |
| LKG1E682MESYAK | Nichicon | CAP ALUM 6800UF 20% 25V SNAP | 70% | View |
| 861010786021 | Würth Elektronik | CAP ALUM 6800UF 20% 63V SNAP | 61% | View |
| LKG1H682MKNS | Nichicon | CAP ALUM 6800UF 20% 50V SLD LUG | 53% | View |
Submit your RFQ for LKG1C682MESCCK and get a quote within 24 hours.
