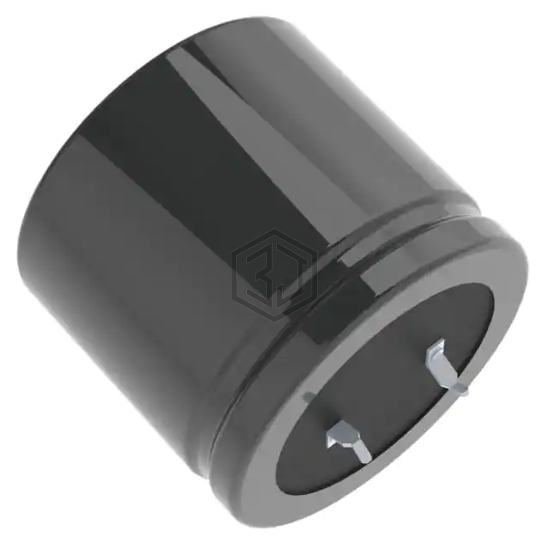

CAP ALUM 10000UF 20% 16V SNAP
LKG1C103MESBBK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 8,147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214865103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 94% | View |
| 109CKS016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 16V RADIAL | 92% | View |
| LKS1E103MESB | Nichicon | CAP ALUM 10000UF 20% 25V SNAP | 81% | View |
| ELG109M025AQ4AA | KEMET | CAP ALUM 10000UF 20% 25V SNAP | 80% | View |
| MAL204854103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 71% | View |
| MAL204863103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 6.3V RADIAL | 59% | View |
