Cornell Dubilier / Illinois Capacitor

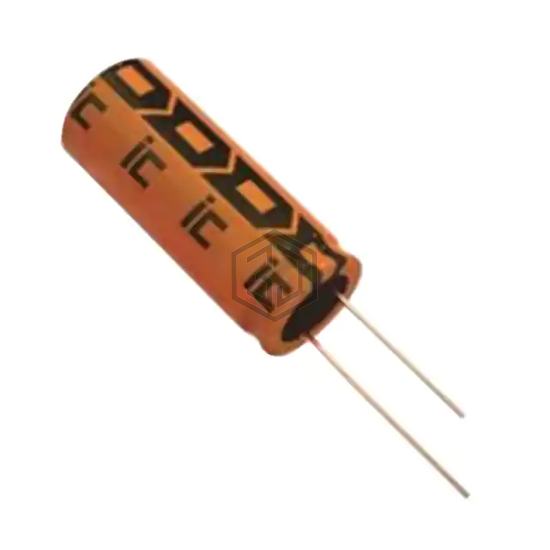

CAP ALUM 10000UF 20% 16V RADIAL
109CKS016M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 56mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.23 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.522 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1C103MESBBK | Nichicon | CAP ALUM 10000UF 20% 16V SNAP | 92% | View |
| MAL214865103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V RADIAL | 86% | View |
| LKS1E103MESB | Nichicon | CAP ALUM 10000UF 20% 25V SNAP | 73% | View |
| ELG109M025AQ4AA | KEMET | CAP ALUM 10000UF 20% 25V SNAP | 68% | View |
| MAL204854103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 63% | View |
| LLS1J103MELC | Nichicon | CAP ALUM 10000UF 20% 63V SNAP | 56% | View |
Submit your RFQ for 109CKS016M and get a quote within 24 hours.
