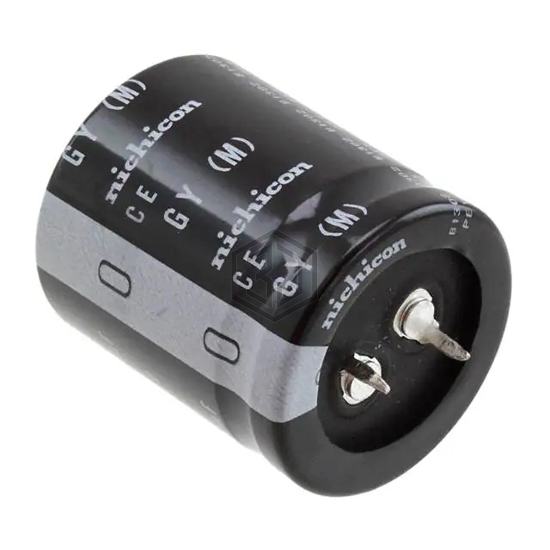

CAP ALUM 6800UF 20% 50V SNAP
LGY1H682MELB35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 9,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.875 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VNN682MQ40U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 100% | View |
| B41505A6688M002 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 50V SNAP | 95% | View |
| 381LQ682M035J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 87% | View |
| 50MXC6800MEFC30X35 | Rubycon | CAP ALUM 6800UF 20% 50V SNAP | 87% | View |
| 381LX682M035J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 84% | View |
| ELXV100ELL682ML35S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 77% | View |
