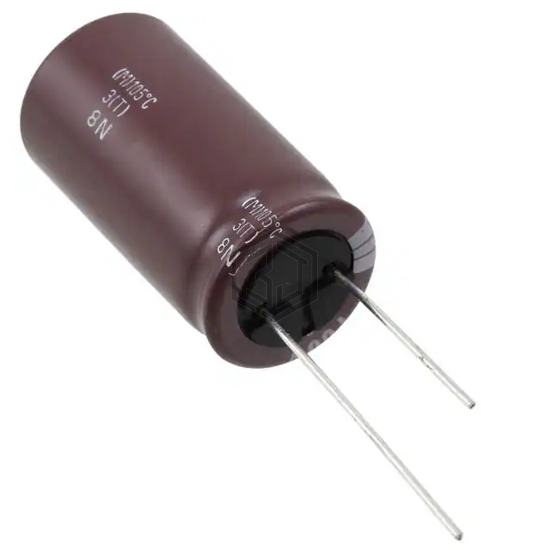

CAP ALUM 6800UF 20% 10V RADIAL
ELXV100ELL682ML35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,372
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.3545 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.77 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 94% | View |
| UPA1C682MHD | Nichicon | CAP ALUM 6800UF 20% 16V RADIAL | 84% | View |
| MAL225055682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 83% | View |
| MAL215065682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 81% | View |
| URZ1A682MHD | Nichicon | CAP ALUM 6800UF 20% 10V RADIAL | 72% | View |
| MAL215066682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V RADIAL | 70% | View |
Submit your RFQ for ELXV100ELL682ML35S and get a quote within 24 hours.
