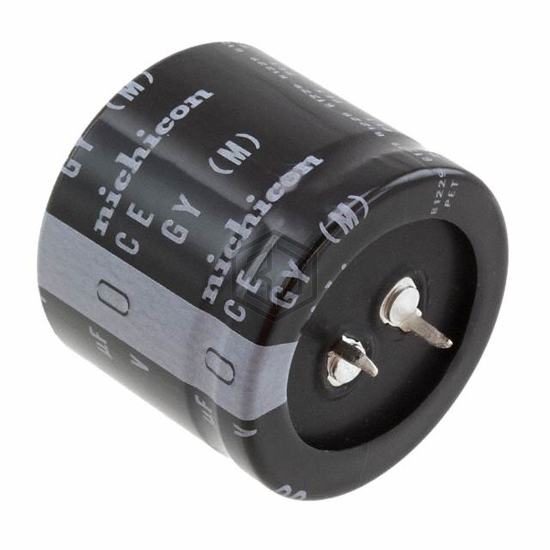

CAP ALUM 22000UF 20% 16V SNAP
LGY1C223MELC30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 6,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.795 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 229LMB016M2ED | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22000UF 20% 16V SNAP | 98% | View |
| EKMH160VSN223MR35S | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 98% | View |
| 6.3YXS22000MEFC18X40 | Rubycon | CAP ALUM 22000UF 20% 6.3V RADIAL | 74% | View |
| 6.3PX22000MEFC18X31.5 | Rubycon | CAP ALUM 22000UF 20% 6.3V RADIAL | 61% | View |
| EKMH350VNN223MA50U | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 61% | View |
| EKMH350VSN223MA50S | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 61% | View |
Submit your RFQ for LGY1C223MELC30 and get a quote within 24 hours.
