Cornell Dubilier / Illinois Capacitor

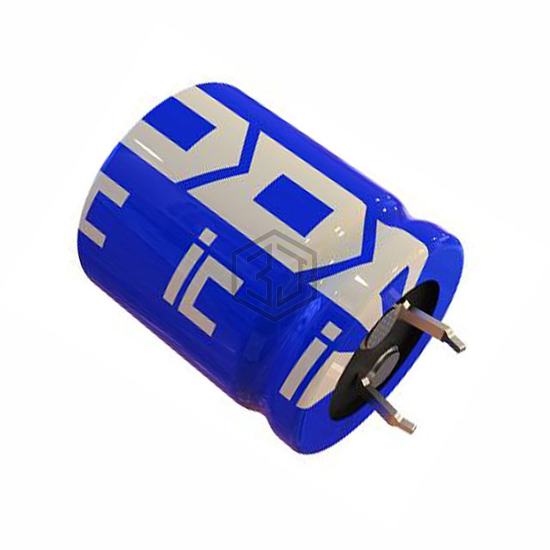

CAP ALUM 22000UF 20% 16V SNAP
229LMB016M2ED is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 7,838
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 37.6787mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1C223MELC30 | Nichicon | CAP ALUM 22000UF 20% 16V SNAP | 98% | View |
| EKMH160VSN223MR35S | United Chemi-Con | CAP ALUM 22000UF 20% 16V SNAP | 97% | View |
| 6.3YXS22000MEFC18X40 | Rubycon | CAP ALUM 22000UF 20% 6.3V RADIAL | 76% | View |
| EKMH100VNN223MR25S | United Chemi-Con | CAP ALUM 22000UF 20% 10V SNAP | 68% | View |
| EKMH350VNN223MA50U | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 62% | View |
| EKMH350VSN223MA50S | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 62% | View |
