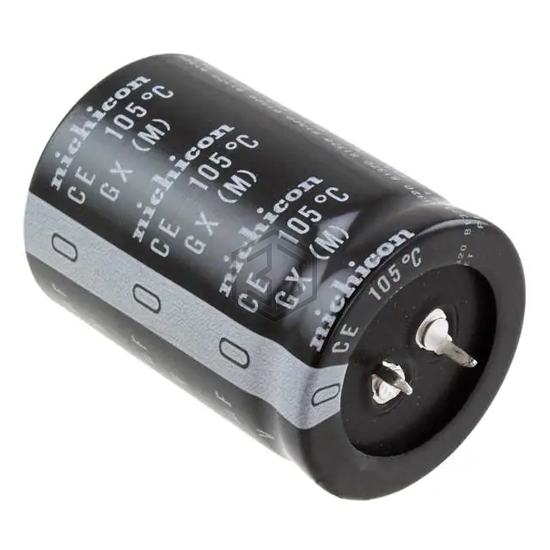

CAP ALUM 560UF 20% 450V SNAP
LGX2W561MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.98 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8314 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43515B0567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 420V SNAP | 89% | View |
| LGU2F561MELC | Nichicon | CAP ALUM 560UF 20% 315V SNAP | 88% | View |
| LGG2G561MELC35 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 87% | View |
| 385VXS560MEFC30X50 | Rubycon | CAP ALUM 560UF 20% 385V SNAP | 86% | View |
| LKX2E561MESZ50 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 70% | View |
| B43254C2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 70% | View |
