CAP ALUM 560UF 20% 315V SNAP

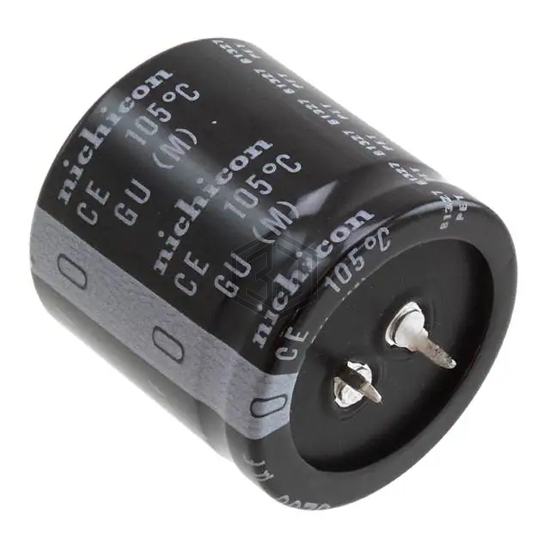

LGU2F561MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 4,913
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9315 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350MXC560MEFCSN35X40 | Rubycon | CAP ALUM 560UF 20% 350V SNAP | 93% | View |
| LGX2W561MELC50 | Nichicon | CAP ALUM 560UF 20% 450V SNAP | 88% | View |
| 385VXS560MEFC30X50 | Rubycon | CAP ALUM 560UF 20% 385V SNAP | 86% | View |
| LGG2G561MELC35 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 82% | View |
| B43254C2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 75% | View |
| 180MXG560MEFCSN22X40 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 64% | View |
