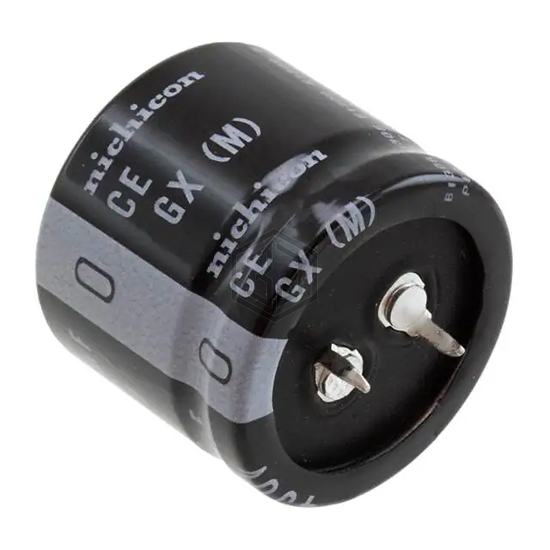

CAP ALUM 470UF 20% 250V SNAP
LGX2E471MELB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 2,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.265 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM251VSN471MQ40U | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 100% | View |
| 250MXG470MEFCSN30X25 | Rubycon | CAP ALUM 470UF 20% 250V SNAP | 98% | View |
| LGR2E471MELB35 | Nichicon | CAP ALUM 470UF 20% 250V SNAP | 96% | View |
| EKMH201VNN471MR25U | United Chemi-Con | CAP ALUM 470UF 20% 200V SNAP | 93% | View |
| 350MXG470MEFCSN35X30 | Rubycon | CAP ALUM 470UF 20% 350V SNAP | 87% | View |
| PK2G471MND2550 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 83% | View |
Submit your RFQ for LGX2E471MELB25 and get a quote within 24 hours.
