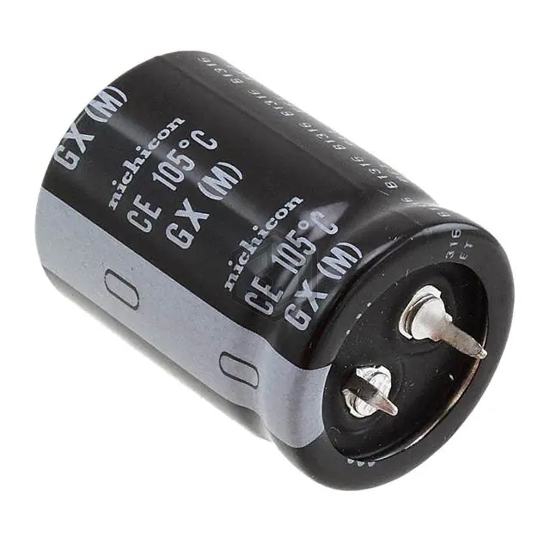

CAP ALUM 680UF 20% 200V SNAP
LGX2D681MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.805 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200VXR680MEFCSN30X30 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 95% | View |
| 220MXG680MEFCSN25X35 | Rubycon | CAP ALUM 680UF 20% 220V SNAP | 93% | View |
| 381LX681M250J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 87% | View |
| LGU2F681MELB | Nichicon | CAP ALUM 680UF 20% 315V SNAP | 80% | View |
| PL2W681MND3550 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 77% | View |
| EEU-FS1J681SB | Panasonic Electronic Components | CAP ALUM 680UF 20% 63V RADIAL | 69% | View |
Submit your RFQ for LGX2D681MELA35 and get a quote within 24 hours.
