Panasonic Electronic Components

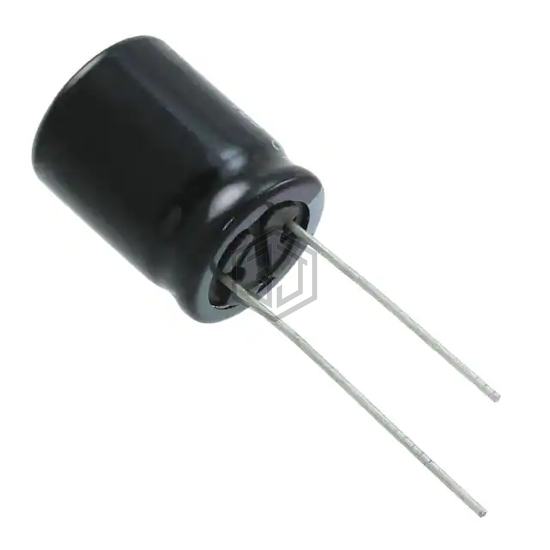

CAP ALUM 680UF 20% 63V RADIAL
EEU-FS1J681SB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.61475 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.153 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.807" (20.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H681MHD6 | Nichicon | CAP ALUM 680UF 20% 50V RADIAL | 80% | View |
| EKY-800ELL681MM25S | United Chemi-Con | CAP ALUM 680UF 20% 80V RADIAL | 78% | View |
| 381LX681M250J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 75% | View |
| 220MXG680MEFCSN25X35 | Rubycon | CAP ALUM 680UF 20% 220V SNAP | 65% | View |
| 63YXG680MEFCGC18X20 | Rubycon | CAP ALUM 680UF 20% 63V RADIAL | 58% | View |
| 678D667H010DG5J | Vishay Sprague | CAP ALUM 660UF 10V RADIAL | 53% | View |
