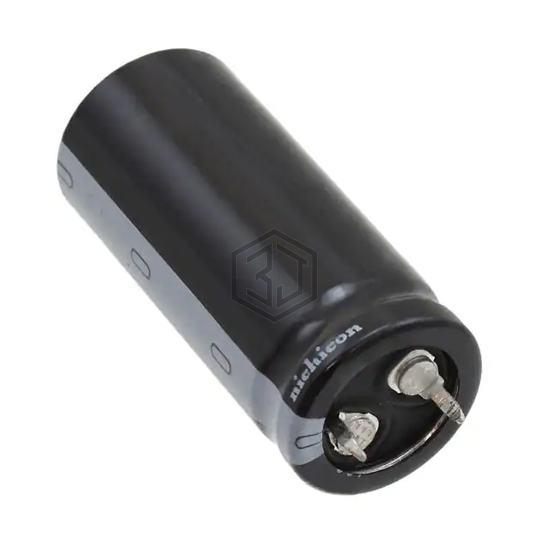

CAP ALUM 560UF 20% 180V SNAP
LGU2Z561MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 5,673
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.325 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43255E2567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 80% | View |
| MAL215819561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 100V SNAP | 71% | View |
| EEU-FC1H561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 70% | View |
| 50YXS560MEFC16X16 | Rubycon | CAP ALUM 560UF 20% 50V RADIAL | 63% | View |
| MAL214658561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 63V RADIAL | 63% | View |
| EKZE800ELL561MK40S | United Chemi-Con | CAP ALUM 560UF 20% 80V RADIAL | 60% | View |
