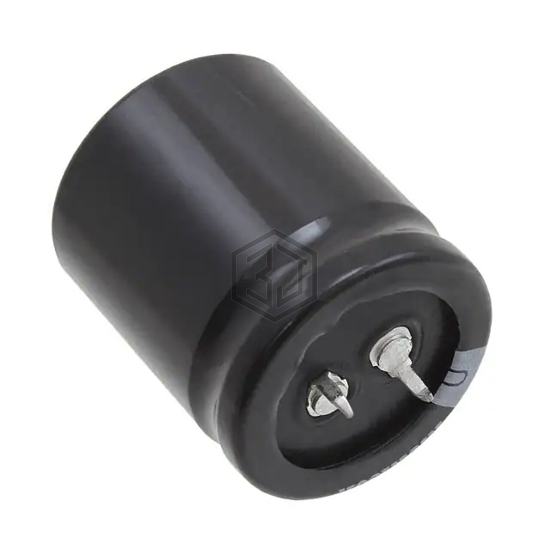

CAP ALUM 1000UF 20% 180V SNAP
LGU2Z102MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 8,499
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAR2D102MELC25 | Nichicon | CAP ALUM 1000UF 20% 200V SNAP | 97% | View |
| 160MXC1000MEFC22X50 | Rubycon | CAP ALUM 1000UF 20% 160V SNAP | 95% | View |
| B43644F2108M002 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 250V SNAP | 83% | View |
| MAL216259102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 100V SNAP | 73% | View |
| B41689A5108Q001 | EPCOS - TDK Electronics | CAP ALUM 1000UF 25V AXIAL | 71% | View |
| 35ZLG1000MEFC12.5X25 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 68% | View |
Submit your RFQ for LGU2Z102MELB and get a quote within 24 hours.
