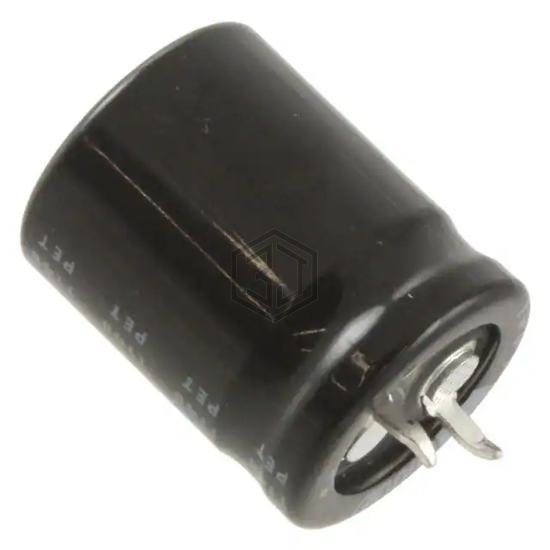

CAP ALUM 47UF 20% 450V SNAP
LGU2W470MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,929
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 557.7 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500BXC47MEFCGC18X31.5 | Rubycon | CAP ALUM 47UF 20% 500V RADIAL | 92% | View |
| EEU-EB2G470S | Panasonic Electronic Components | CAP ALUM 47UF 20% 400V RADIAL | 88% | View |
| B43858C4476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 350V RADIAL | 71% | View |
| ECA-2VHG470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 350V RADIAL | 68% | View |
| UCS2D470MHD1TO | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 60% | View |
| MAL216031479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for LGU2W470MELY and get a quote within 24 hours.
