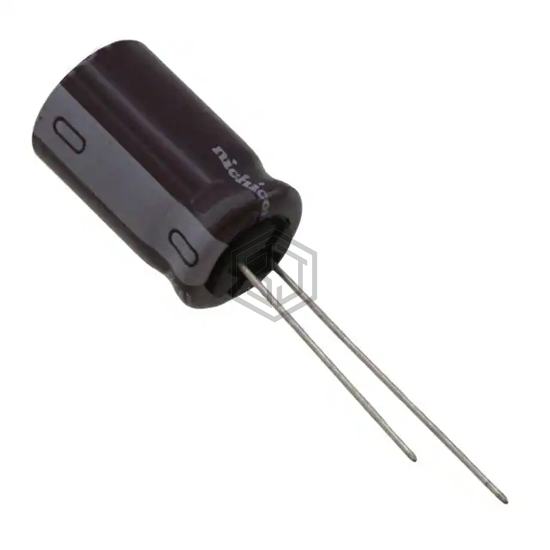

CAP ALUM 47UF 20% 200V RADIAL
UCS2D470MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,868
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43888J2476M000 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 250V TH | 90% | View |
| 400BXG47MEFC16X20 | Rubycon | CAP ALUM 400V POLAR | 74% | View |
| 450BXG47MEFC16X25 | Rubycon | CAP ALUM 450V POLAR | 74% | View |
| 400QXW47MEFR10X40 | Rubycon | CAP ALUM 47UF 20% 400V RADIAL | 66% | View |
| MAL216031479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V RADIAL | 56% | View |
| UBT2D470MHD1TO | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 53% | View |
Submit your RFQ for UCS2D470MHD1TO and get a quote within 24 hours.
