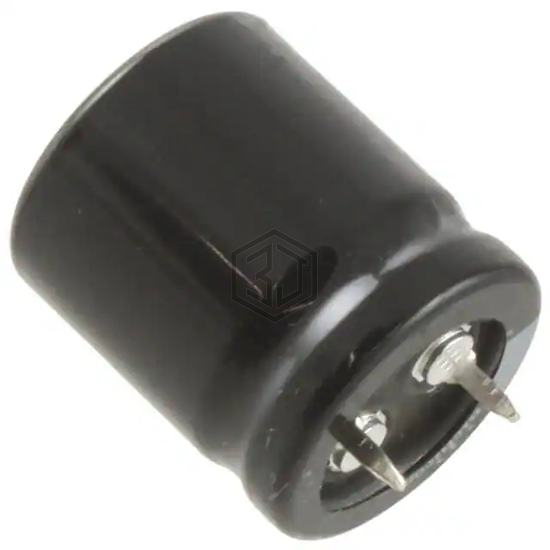

CAP ALUM 82UF 20% 400V SNAP
LGU2G820MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 6,353
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915.2 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKX2W820MESZ30 | Nichicon | CAP ALUM 82UF 20% 450V SNAP | 96% | View |
| 420BXW82MEFR18X25 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 85% | View |
| 420BXW82MEFR16X30 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 85% | View |
| UCY2E820MHD9 | Nichicon | CAP ALUM 82UF 20% 250V RADIAL | 78% | View |
| LGW2W820MELZ25 | Nichicon | CAP ALUM 82UF 20% 450V SNAP | 77% | View |
| UCS2D820MHD1TN | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 67% | View |
Submit your RFQ for LGU2G820MELZ and get a quote within 24 hours.
