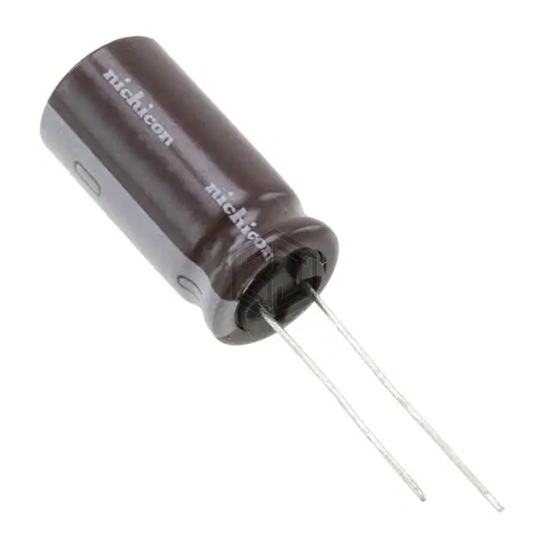

CAP ALUM 82UF 20% 250V RADIAL
UCY2E820MHD9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 1,017
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 615 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.23 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2E820MHD3TN | Nichicon | CAP ALUM 82UF 20% 250V RADIAL | 94% | View |
| UCS2D820MHD1TN | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 88% | View |
| EKXG351ELL820MM25S | United Chemi-Con | CAP ALUM 82UF 20% 350V RADIAL | 84% | View |
| 420HXW82MEFR14.5X30 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 77% | View |
| 420BXW82MEFR16X30 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 77% | View |
| B43504A9826M82 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 400V SNAP | 77% | View |
Submit your RFQ for UCY2E820MHD9 and get a quote within 24 hours.
