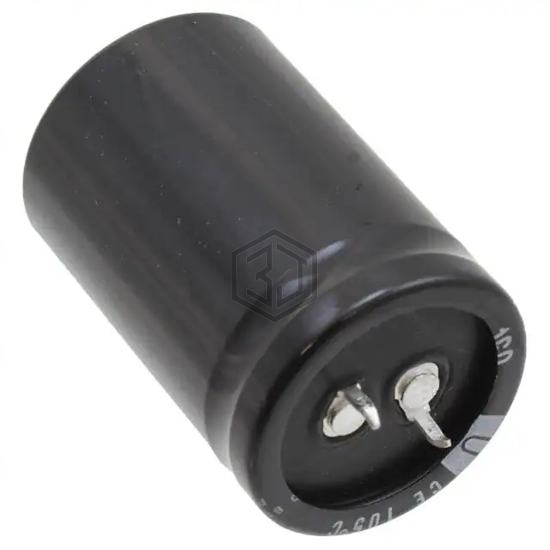

CAP ALUM 82UF 20% 400V SNAP
LGU2G820MELY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,547
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915.2 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXG82MEFCSN20X25 | Rubycon | CAP ALUM 82UF 20% 400V SNAP | 93% | View |
| 350CFX82M18X25 | Rubycon | CAP ALUM 82UF 20% 350V RADIAL | 91% | View |
| 400LXW82MEFR10X55 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 84% | View |
| UAS2G820MHD | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 84% | View |
| 450HXW82MEFR12.5X45 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 83% | View |
| UCY2V820MHD3TN | Nichicon | CAP ALUM 82UF 20% 350V RADIAL | 79% | View |
Submit your RFQ for LGU2G820MELY and get a quote within 24 hours.
