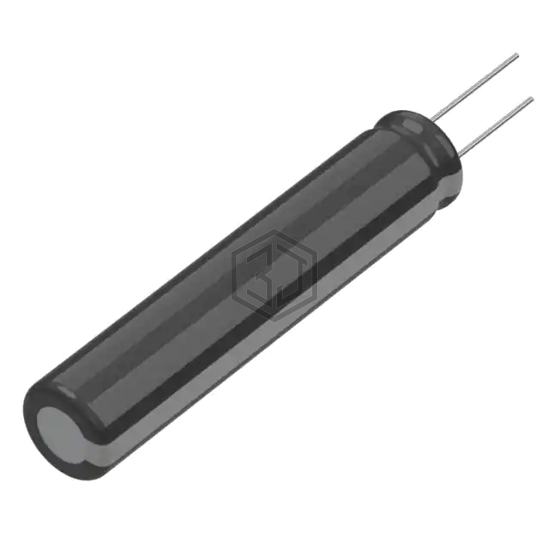

CAP ALUM 82UF 20% 400V RADIAL
400LXW82MEFR10X55 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 82UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.584 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2V820MHD3TN | Nichicon | CAP ALUM 82UF 20% 350V RADIAL | 94% | View |
| 450HXW82MEFR12.5X45 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 94% | View |
| EKWA421ELL820MK40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 86% | View |
| UAS2G820MHD | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 68% | View |
| 250TXW82MEFR12.5X25 | Rubycon | CAP ALUM 82UF 20% 250V RADIAL TH | 61% | View |
| EKZN800ELL820MH20D | United Chemi-Con | CAP ALUM 82UF 20% 80V RADIAL | 56% | View |
Submit your RFQ for 400LXW82MEFR10X55 and get a quote within 24 hours.
