CAP ALUM 120UF 20% 400V SNAP

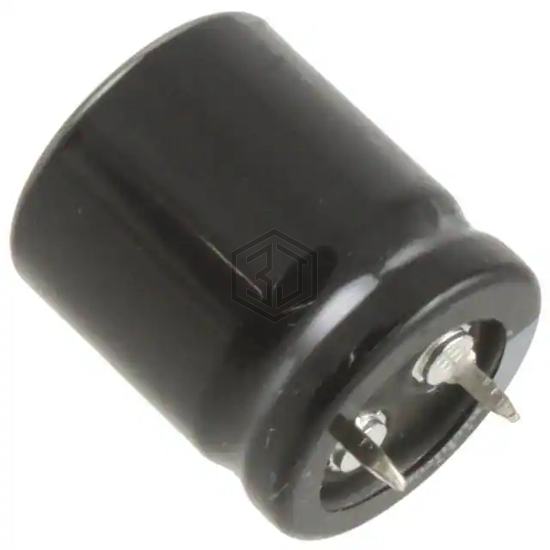

LGU2G121MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0725 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG421ELL121MM35S | United Chemi-Con | CAP ALUM 120UF 20% 420V RADIAL | 96% | View |
| EKMM451VSN121MP40S | United Chemi-Con | CAP ALUM 120UF 20% 450V SNAP | 93% | View |
| 250TXW120MEFR16X25 | Rubycon | CAP ALUM 120UF 20% 250V RADIAL | 84% | View |
| 500VXG120MEFC25X35 | Rubycon | CAP ALUM 120UF 20% 500V SNAP | 79% | View |
| UCY2W121MHD6 | Nichicon | CAP ALUM 120UF 20% 450V RADIAL | 77% | View |
| EEU-FM1H121LB | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 76% | View |
Submit your RFQ for LGU2G121MELA and get a quote within 24 hours.
