CAP ALUM 120UF 20% 450V RADIAL

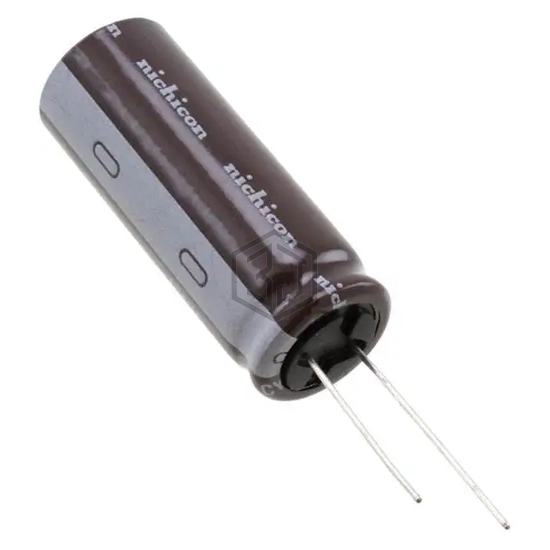

UCY2W121MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 7,320
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 945 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.870" (47.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL451ELL121MM35S | United Chemi-Con | CAP ALUM 120UF 20% 450V RAD TH | 97% | View |
| EKXJ421ELL121ML50S | United Chemi-Con | CAP ALUM 120UF 20% 420V RADIAL | 95% | View |
| 381LX121M315J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 315V SNAP | 72% | View |
| EEU-FM1H121LB | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 63% | View |
| 250TXW120MEFR16X25 | Rubycon | CAP ALUM 120UF 20% 250V RADIAL | 62% | View |
| 672D127H050DT2C | Vishay Sprague | CAP ALUM 120UF 60V RADIAL | 56% | View |
